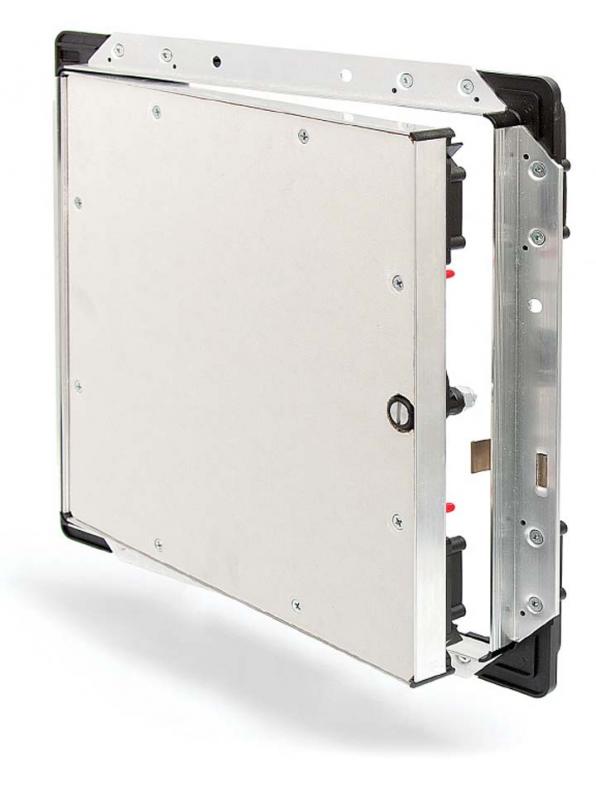

BP-58 Bauco Plus

Designed to provide access in walls and ceilings, while maintaining an invisible, architecturally pleasing appearance

Item	MM	Rough Opening	LBS	KG
BP-58 12 X 12	305 X 305	+ 1/4"	5	2.25	Add To Quote
BP-58 18 X 18	457 X 457	+ 1/4"	9	4	Add To Quote
BP-58 24 X 24	610 X 610	+ 1/4"	14	6.3	Add To Quote
BP-58 24 X 36	610 X 914	+ 1/4"	21	9.5	Add To Quote

Product Features

BP-58 Bauco Plus Access Door Specifications

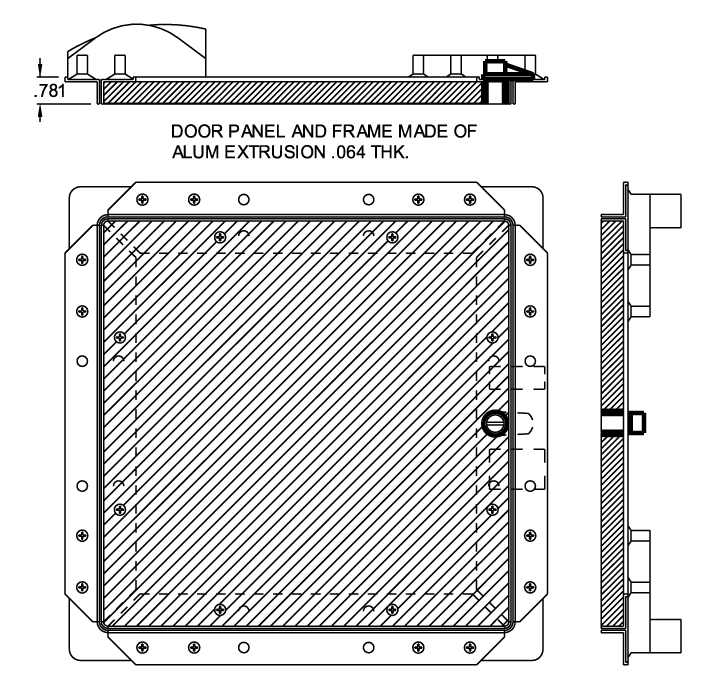

Material: Aluminum extrusion

Door: 5/8” drywall inserted into door panel (1/2” also available)

Door Frame: Recessed aluminum extrusion provides similar edge to drywall bead against which wall or ceiling surface can be finished

Hinge: Unique concealed non corroding two point pin hinge

Standard Latch: Screwdriver operated cam latch

Optional Latches/Locks: Tamper resistant torx head cam latch, cylinder lock and key, concealed touch latch

Finish: Mill Finish. Drywall is ready to be finished to match surrounding wall or ceiling surface

See the Datasheet for more product information.
