Inquire
| Item | MM | Rough Opening | LBS | KG | QTY | |
|---|---|---|---|---|---|---|
| 12" Dia | 305 | + 1/2" | 2.0 | 0.9 | Add To Quote | |
| 16" Dia | 406 | + 1/2" | 5.0 | 2.3 | Add To Quote | |
| 18" Dia | 457 | + 1/2" | 6.0 | 2.7 | Add To Quote | |
| 24" Dia | 610 | + 1/2" | 12.0 | 5.5 | Add To Quote |
Product Features

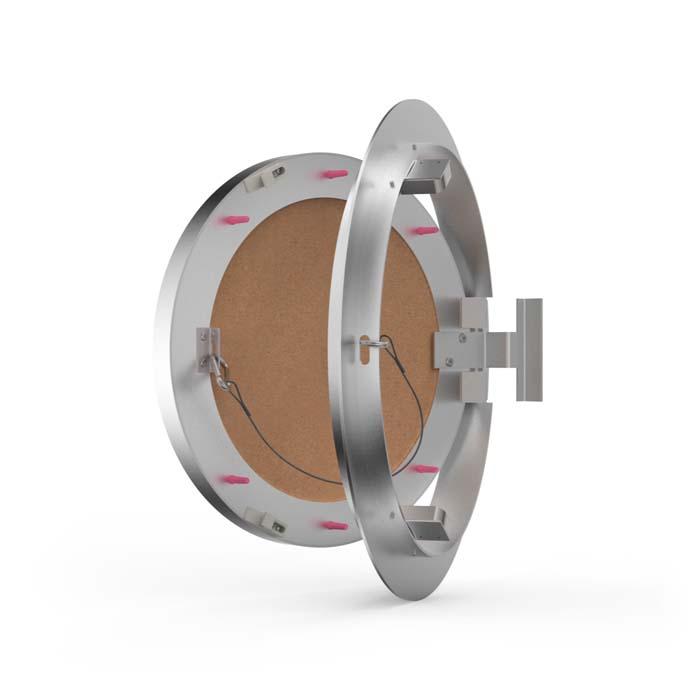

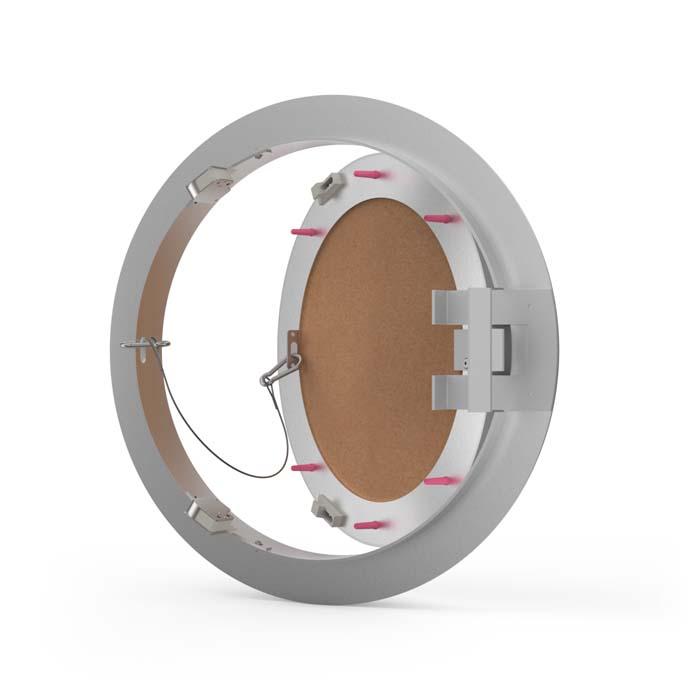

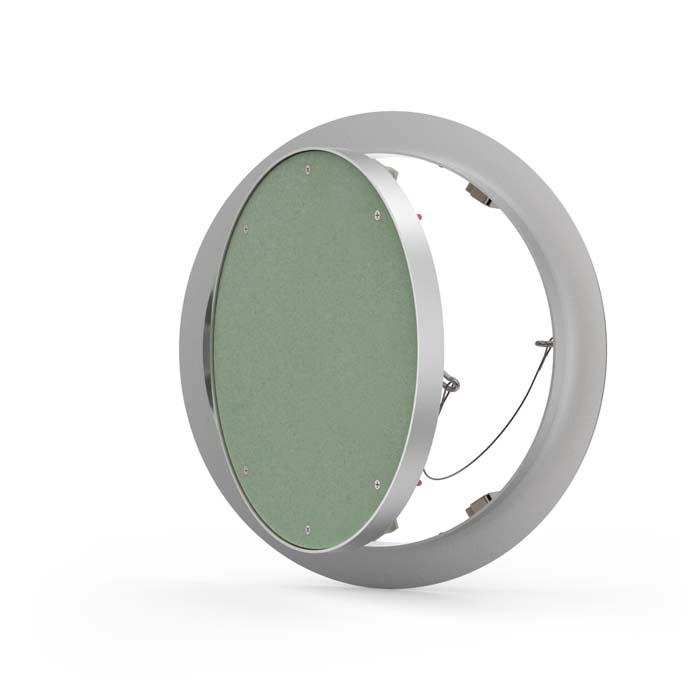

DW-5058R Access Door Specifications
Material: aluminum extrusion with 5/8” drywall in door panel
Door: .080“ aluminum extrustion
Door Frame: .080” aluminum extrusion recessed to provide similar edge to drywall bead to allow for finishing of wall or ceiling surface.
Hinge: Hinge allows door panel to open to 90 degrees, and also allows for door panel to be removed from frame. Safety chain installed on door & frame for safety.
Standard Latch: Concealed Touch Latches
Optional Latches/Locks: Screwdriver operated cam latch, allen head cam latch, spanner head cam latch, cylinder lock & key.
Finish: Mill Finish. Drywall is ready to be finished to match surrounding wall or ceiling surface.
See the Datasheet for more product information.
