| Item | MM | Rough Opening | LBS | KG | QTY | |
|---|---|---|---|---|---|---|
| DW-5058 12 X 12 | 305 X 305 | + 3/8" | 2.0 | 0.9 | Add To Quote | |
| DW-5058 16 X 16 | 406 X 406 | + 3/8" | 5.0 | 2.3 | Add To Quote | |
| DW-5058 18 X 18 | 457 X 457 | + 3/8" | 6.0 | 2.7 | Add To Quote | |
| DW-5058 24 X 24 | 610 X 610 | + 3/8" | 12 | 5.5 | Add To Quote | |
| DW-5058 24 X 36 | 610 X 914 | + 3/8" | 21 | 9.5 | Add To Quote |
Product Features

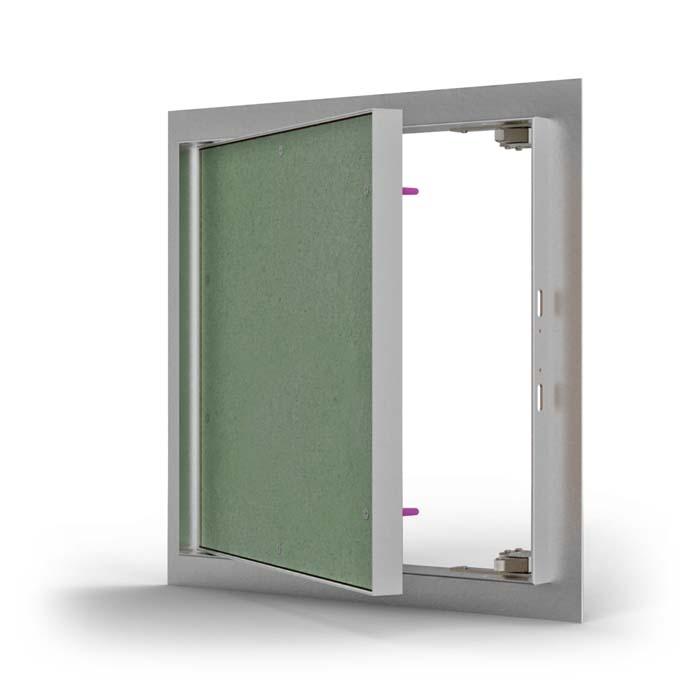

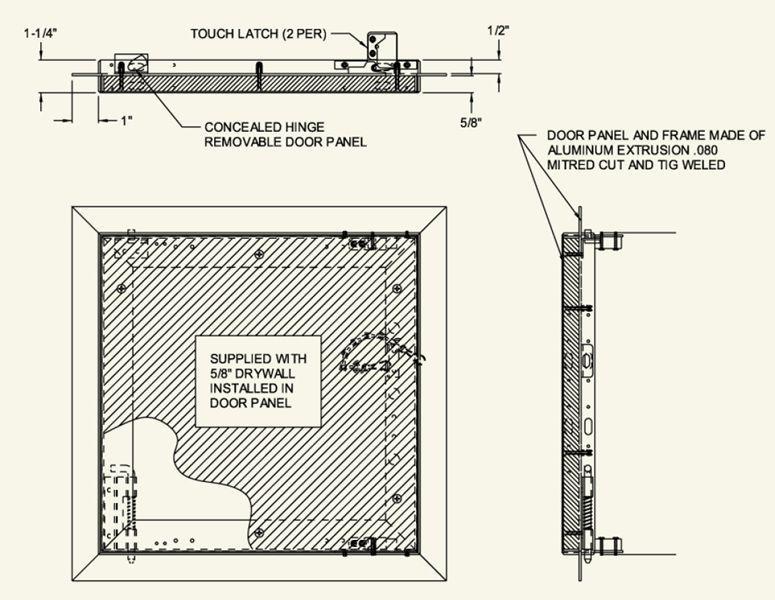

DW-5058 Access Door Specifications
Material: Aluminum extrusion with 5/8” drywall in door panel
Door: .080“ Aluminum
Door Frame: .080” Aluminum extrusion recessed to provide similar edge to drywall bead to allow for finishing of wall or ceiling surface.

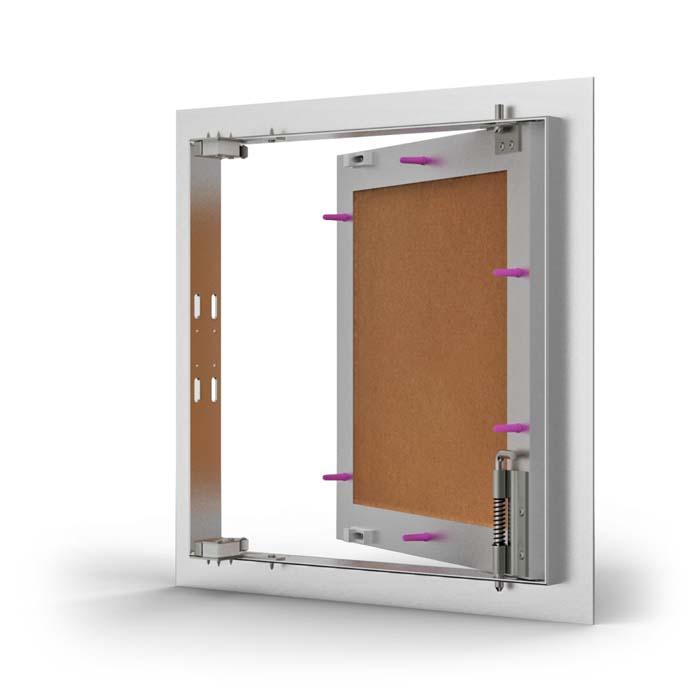

Hinge: Spring loaded hinge pin allows door panel to open to 90 degrees, and also allows for door panel to be removed from frame. Safety chain installed on door & frame for safety.
Standard Latch: Concealed Touch Latches
Optional Latches/Locks: Screwdriver operated cam latch, allen head cam latch, spanner head cam latch, cylinder lock & key.
Finish: Mill Finish. Drywall is ready to be finished to match surrounding wall or ceiling surface.
See the Datasheet for more product information.
