Products / Access Panels / Acudor / Flush Mount Access Panels

Last Modified: 2019-03-04

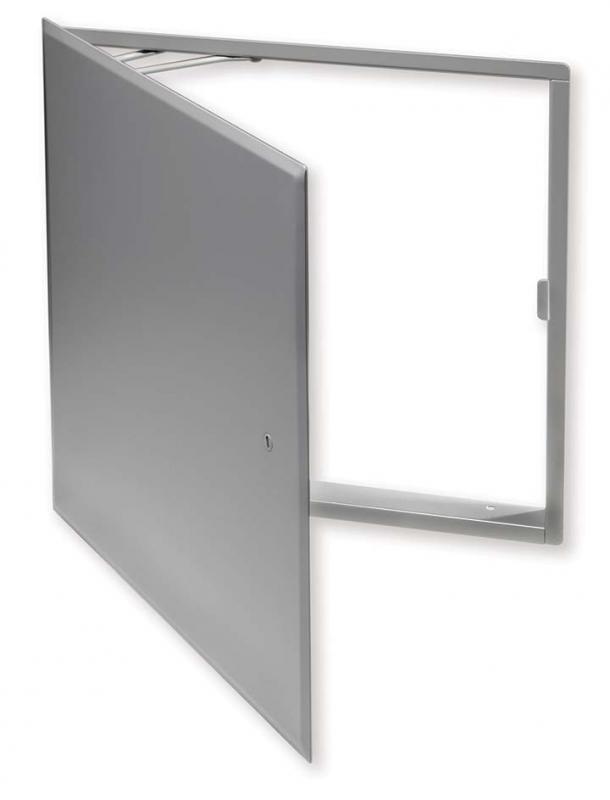

BP-2002

Installation in Drywall, Plaster, Masonry, Tile or any flush surface
Economical and attractive access door for walls & ceilings ideally suited for apartments, condominiums and office buildings

Item	MM	Rough Opening	LBS	KG
BP-2002 8 X 8	203 X 203	+ 3/8"	3.1	1.4	Add To Quote
BP-2002 12 X 12	305 X 305	+ 3/8"	5.1	2.3	Add To Quote
BP-2002 16 X 16	406 X 406	+ 3/8"	8.8	4.0	Add To Quote
BP-2002 18 X 18	457 X 457	+ 3/8"	11.2	5.1	Add To Quote
BP-2002 24 X 24	610 X 610	+ 3/8"	19.8	9.0	Add To Quote

Product Features

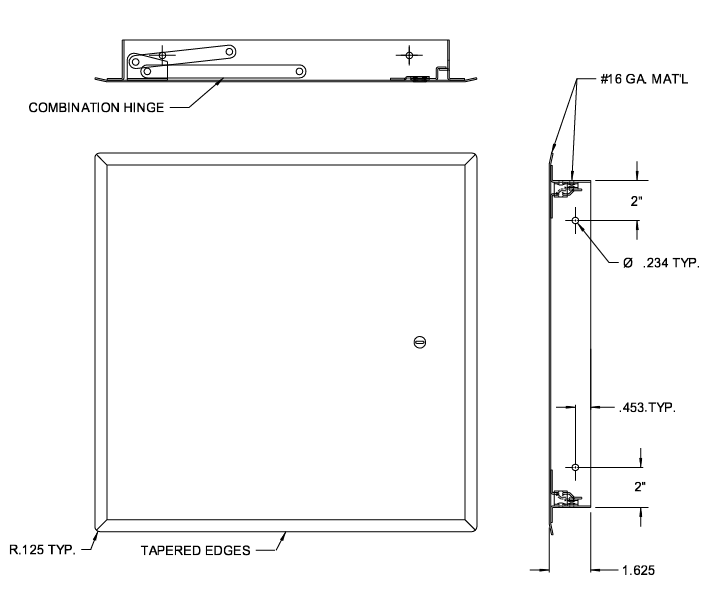

BP-2002 Access Door Specifications

Material: 16 gauge steel door and frame

Door: Beveled edge door panel covers hinge and frame

Door Frame: 1/2“ wide outside flange - 1 1/2” deep mounting frame

Hinge: Concealed Hinge

Latch: Stainless steel screwdriver operated cam latch

Optional Latches/Locks: Cylinder lock and key, allen head cam latch, spanner head cam latch

Finish: White alkyd baking enamel

See the Datasheet for more product information.
