Products / Access Panels / Acudor / Flush Mount Access Panels


UF-5000 UF-5000 UF-5000
UF-5000
Show More
Show Less
Last Modified: 2019-03-04

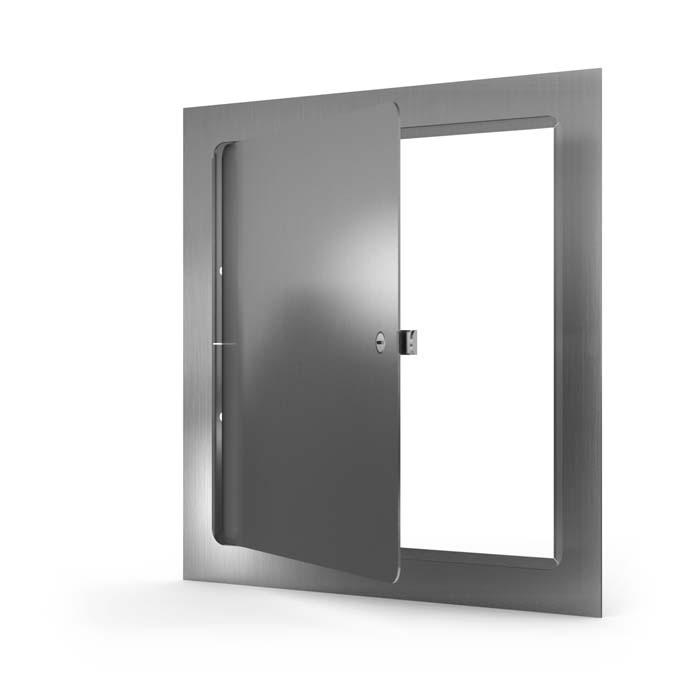

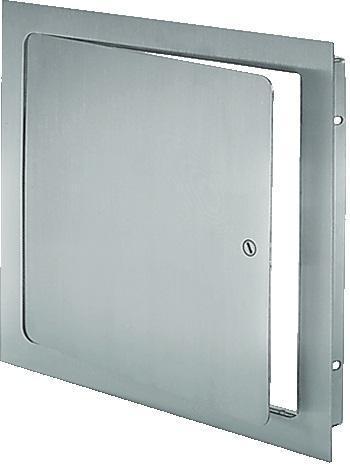

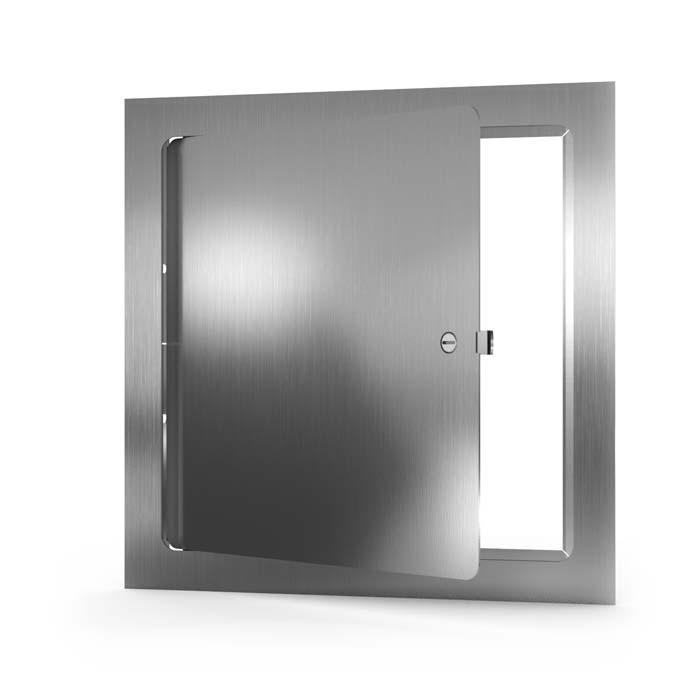

UF-5000

Features

  • Installation in Drywall, Plaster, Masonry, Tile or any flush surface
Product Information
Submittal 6x6 to 16x16
Submittal 18x18 to 36x36
Flush Mount Submittal



ItemMMRough OpeningLBSKGQTY
UF-5000 6 X 6152 X 152+ 3/8"2.9Add To Quote
UF-5000 8 X 8203 X 203+ 3/8"2.71.2Add To Quote
UF-5000 8 X 12203 X 305+ 3/8"3.61.6Add To Quote
UF-5000 10 X 10254 X 254+ 3/8"3.61.6Add To Quote
UF-5000 12 X 12305 X 305+ 3/8"4.72.1Add To Quote
UF-5000 12 X 16305 X 406+ 3/8"62.7Add To Quote
UF-5000 12 X 18305 X 457+ 3/8"73.1Add To Quote
UF-5000 12 X 24305 X 610+ 3/8"8.53.9Add To Quote
UF-5000 14 X 14355 X 355+ 3/8"6.22.7Add To Quote
UF-5000 16 X 16406 X 406+ 3/8"7.63.4Add To Quote
UF-5000 16 X 24406 X 610+ 3/8"12.55.7Add To Quote
UF-5000 18 X 18457 X 457+ 3/8"11.25.1Add To Quote
UF-5000 18 X 24457 X 810+ 3/8"156.7Add To Quote
UF-5000 22 X 22560 X 560+ 3/8"16.37.2Add To Quote
UF-5000 22 X 30560 X 762+ 3/8"219.5Add To Quote
UF-5000 22 X 36560 X 914+ 3/8"2612Add To Quote
UF-5000 24 X 24610 X 610+ 3/8"188.2Add To Quote
UF-5000 24 X 30610 X 762+ 3/8"22.510.2Add To Quote
UF-5000 24 X 36610 X 914+ 3/8"26.612.1Add To Quote
UF-5000 24 X 48610 X 1220+ 3/8"3818.1Add To Quote
UF-5000 30 X 30762 X 762+ 3/8"27.512.5Add To Quote
UF-5000 36 X 36914 X 914+ 3/8"3917.7Add To Quote

UF-5000

Product Features

  • Door panel has rounded safety corners providing an architecturally pleasing appearance
  • One piece trim flange will not rack, sag or distortion
  • Unique continuous concealed hinge will not bind

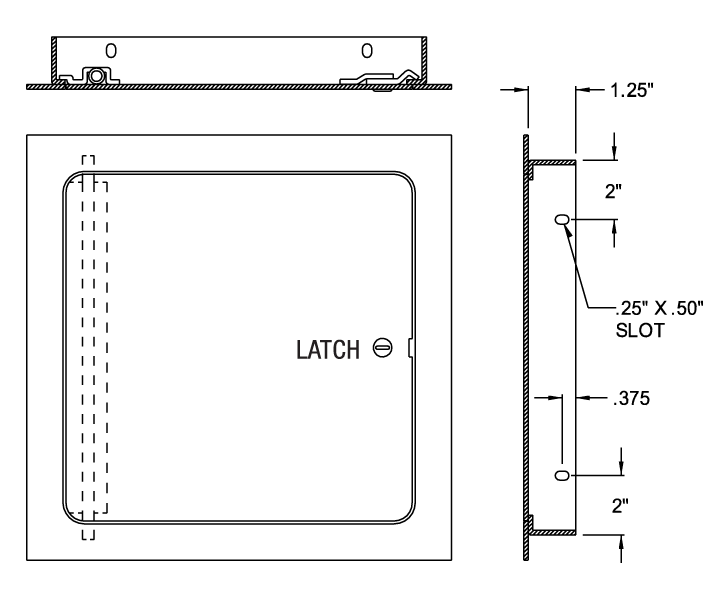

UF-5000 Access Door Specifications

Material: Up to 16” X 16” - 16 gauge, 18 gauge mounting frame, over 16” X 16” - 14 gauge door, 16 gauge mounting frame

Door: Flush to frame with rounded safety corners

Mounting Frame: One piece outer flange welded to mounting frame

Hinge: Contiuous, concealed

Latch: Stainless Steel screwdriver operated cam latch

Optional Latches/Locks: Cylinder lock and key, allen head cam latch, spanner head cam latch

Finish: Steel: 5-stage iron phosphate preparation with prime coat of White alkyd baking enamel OR Stainless Steel: Type 304 - #4 satin polish



See the Datasheet for more product information.
