Products / Access Panels / Acudor / Fire Rated Access Panels


FW-5015 FW-5015 FW-5015
Last Modified: 2019-03-04

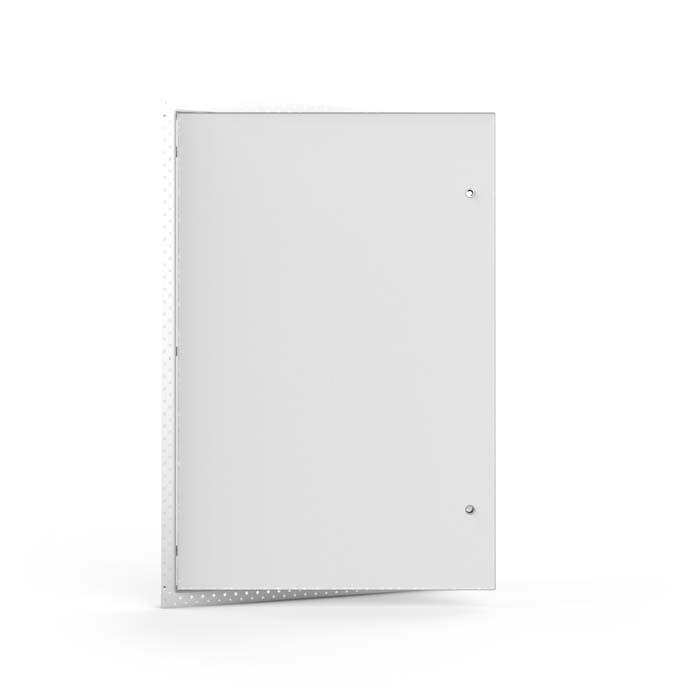

FW-5015

Features

  • For installation in drywall walls requiring concealing of the door panel consistent to surroundings
  • For use in walls, fire-rated for up to 90-minutes with a temperature rise of max 250° C (450°F) over 30 minutes
Submittal
Product Information



ItemMMRough OpeningLBSKGQTY
FW-5015 12 X 12305 X 305+ 3/8"104.5Add To Quote
FW-5015 16 X 16406 X 406+ 3/8"146.4Add To Quote
FW-5015 18 X 18457 X 457+ 3/8"188.2Add To Quote
FW-5015 24 X 24610 X 610+ 3/8"2913.1Add To Quote
FW-5015 24 X 36610 X 914+ 3/8"4219Add To Quote

FW-5015

Product Features

  • For installation in drywall walls requiring concealing of the door panel consistent to surroundings
  • For use in walls, fire-rated for up to 90-minutes with a temperature rise of max 250° C (450°F) over 30 minutes

FW-5015 Access Door Specifications

Door: Steel-22 Gauge recessed fitted with 5/8” thick drywall suitable to accept skim coat finish on site.

Door Frame: Steel-22 Gauge press bent for strength and rigidity with pre-punched flanges for convenient mounting and accepting skim coat finish on site

Hinge: Concealed

Fire Rating (Walls): Meets 1½ hour fire rating requirement in accordance with UL 10(b) and CAN/ULC S104-10 for max size upto 24” x 36”

Latch: Self-latching bolt, operated by flush key

Finish: Satin coat steel



See the Datasheet for more product information.
