Inquire
| Item | MM | Rough Opening | LBS | KG | QTY | |
|---|---|---|---|---|---|---|
| FB-5060-TD 12 X 12 | 305 X 305 | + 3/8" | 8.3 | 3.8 | Add To Quote | |
| FB-5060-TD 18 X 18 | 457 X 457 | + 3/8" | 14.3 | 6.5 | Add To Quote | |
| FB-5060-TD 24 X 24 | 610 X 610 | + 3/8" | 20.3 | 9.2 | Add To Quote |
Product Features

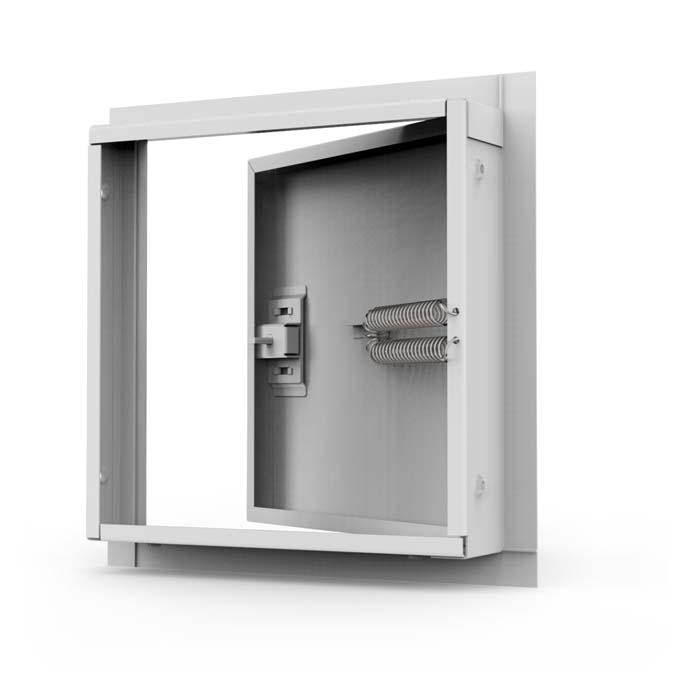

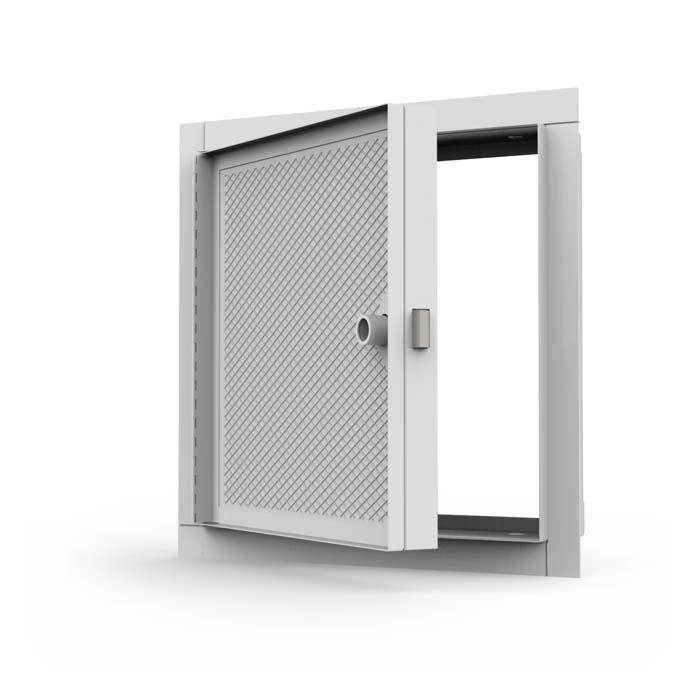

FB-5060-TD Access Door Specifications
Material: Steel
Door: 16 gauge with reinforced edges, door panel recessed 1/2” and lined with self-furring lath.
Mounting Frame: 16 gauge steel
Hinge: Continuous exposed piano hinge
Fire Rating (Walls): UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label. (optional) Max size 36 x 48
Standard Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks.
Finish: Steel: 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
See the Datasheet for more product information.
